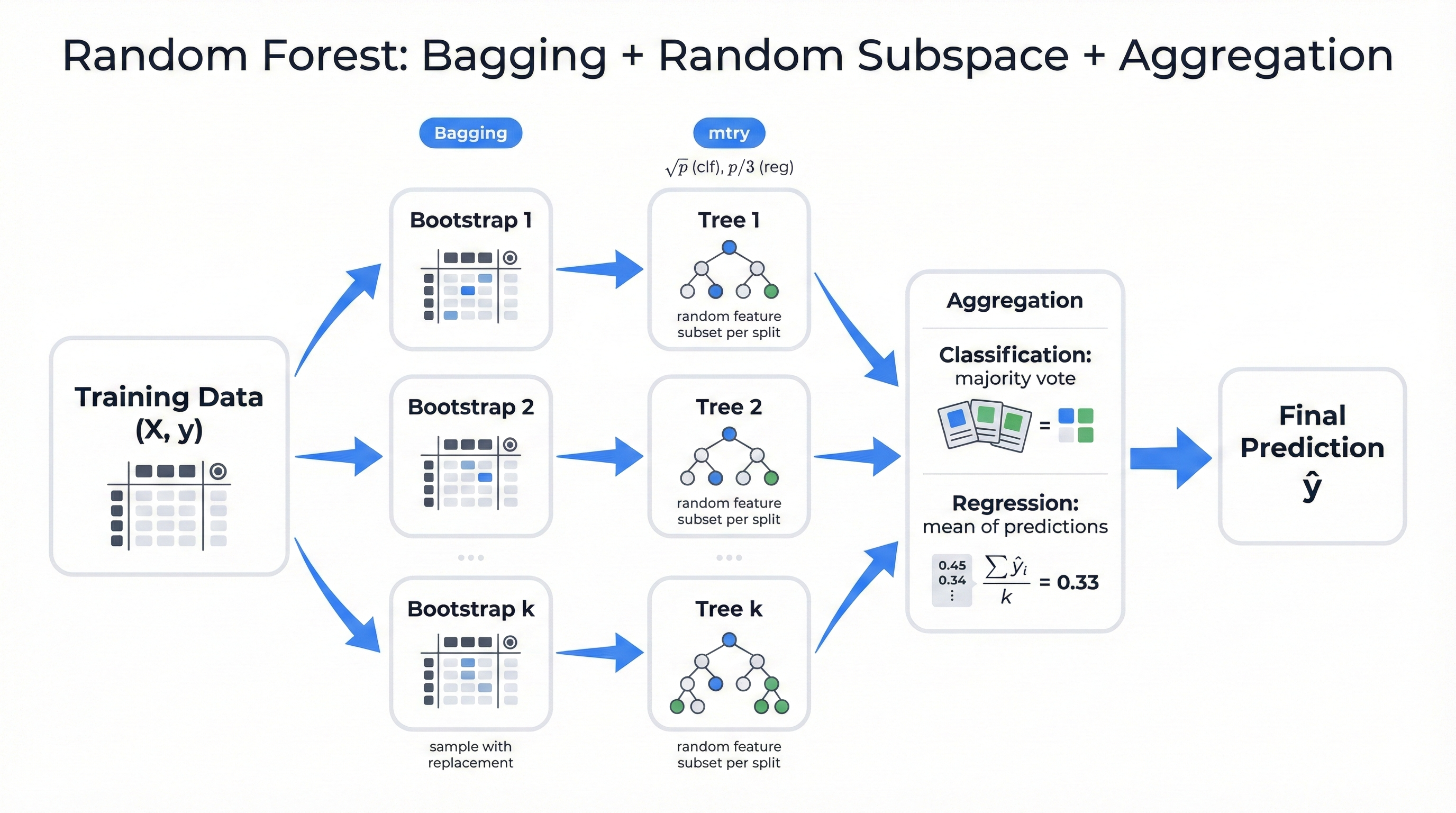

1. Understanding Random Forest: From Decision Trees to Forest Power 1.1 Why Random Forest Dominates Modern ML Random Forest wins. Leo Breiman created it, and now it dominates machine learning competitions more than almost any other algorithm. Accuracy, robustness, ease of use—it delivers all three. Want to know why? The algorithm builds hundreds or thousands of decision trees, then combines their predictions into one powerful forecast. Classification uses majority voting. Regression averages predictions. This ensemble approach fixes decision trees' biggest weakness: their tendency to overfit your training data and fail on new examples. Think of decision trees as flowcharts. They learn yes/no questions about your data. Start at the root with your entire dataset, then recursively split based on feature questions. Each split aims to increase "purity"—separating different classes more cleanly. You measure purity with Gini Impurity or Entropy. The splitting continues. When does it stop? When you hit a stopping criterion: maximum depth reached, perfect purity achieved, or too few samples remaining. Terminal leaves carry the final predictions. Ensemble learning powers Random Forest. Multiple models often beat any single model. But you need two things for a strong ensemble: accurate individual models and diversity between them, so they make different errors that cancel out when combined. Random Forest achieves this through two key techniques. 1. Bootstrap Aggregating (Bagging): You create many bootstrap samples by drawing with replacement from your original dataset. Each sample has the same size as the original, but some points appear multiple times while others get left out entirely. About two-thirds of original points appear in any bootstrap sample. The remaining one-third forms the "out-of-bag" sample for validation—a free test set you didn't have to hold out. 2. Random Feature Subspace Selection: This distinguishes Random Forest from simple bagged trees. At every split, instead of considering all features to find the optimal question, you randomly select a subset and find the best split within that subset. This forces trees to be different—they can't all be dominated by the same highly predictive features, ensuring diversity in the ensemble. For classification, you typically use the square root of p features (where p equals the total number of features). For regression, use p divided by 3. Classification: mtry = √p Regression: mtry = p/3 Predictions become simple. Pass new data through every tree. Classification uses majority voting across all trees. Regression averages predictions. This aggregation smooths out individual tree errors, creating a more stable and accurate model. Working Example: Random Forest Supervised Foundations This example demonstrates how Random Forest improves upon single decision trees through ensemble learning. import numpy as np import matplotlib.pyplot as plt from sklearn.ensemble import RandomForestClassifier from sklearn.tree import DecisionTreeClassifier from sklearn.datasets import make_classification, make_circles from sklearn.model_selection import train_test_split from sklearn.metrics import accuracy_score # Generate datasets to demonstrate Random Forest strengths np.random.seed(42) print("Random Forest: From Single Trees to Ensemble Power") print("=" * 47) # Dataset 1: Linearly separable (easy for single tree) X_linear, y_linear = make_classification(n_samples=300, n_features=2, n_redundant=0, n_informative=2, n_clusters_per_class=1, class_sep=2, random_state=42) # Dataset 2: Non-linear boundary (challenging for single tree) X_circles, y_circles = make_circles(n_samples=300, noise=0.1, factor=0.3, random_state=42) datasets = [ (X_linear, y_linear, "Linear Boundary"), (X_circles, y_circles, "Non-Linear Boundary") ] for X, y, name in datasets: print(f"\nDataset: {name}") print("-" * 30) # Split data X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42) # Single Decision Tree tree = DecisionTreeClassifier(random_state=42) tree.fit(X_train, y_train) tree_pred = tree.predict(X_test) tree_acc = accuracy_score(y_test, tree_pred) # Random Forest with different numbers of trees forest_sizes = [1, 5, 10, 50, 100] forest_accuracies = [] for n_trees in forest_sizes: rf = RandomForestClassifier(n_estimators=n_trees, random_state=42) rf.fit(X_train, y_train) rf_pred = rf.predict(X_test) rf_acc = accuracy_score(y_test, rf_pred) forest_accuracies.append(rf_acc) if n_trees in [1, 10, 100]: print(f" Random Forest ({n_trees:3d} trees): {rf_acc:.3f} accuracy") print(f" Single Tree: {tree_acc:.3f} accuracy") print(f" Improvement with 100 trees: {forest_accuracies[-1] - tree_acc:+.3f}") # Demonstrate bootstrap sampling and feature randomness print(f"\nBootstrap Sampling and Feature Randomness") print("-" * 41) # Create a dataset where we can track individual tree behavior X, y = make_classification(n_samples=200, n_features=4, n_informative=3, n_redundant=1, random_state=42) # Track what happens in individual trees rf = RandomForestClassifier(n_estimators=5, max_depth=3, random_state=42) rf.fit(X, y) print(f"Original dataset: {X.shape[0]} samples, {X.shape[1]} features") print(f"Forest with {len(rf.estimators_)} trees") # Analyze each tree in the small forest for i, tree in enumerate(rf.estimators_): # Get bootstrap indices (not directly accessible, but we can analyze tree data) n_samples_bootstrap = tree.tree_.n_node_samples[0] # Root node samples print(f"\nTree {i+1}:") print(f" Bootstrap samples used: {n_samples_bootstrap}") print(f" Tree depth: {tree.get_depth()}") print(f" Number of leaves: {tree.get_n_leaves()}") # Show which features were used (get feature importance > 0) feature_importance = tree.feature_importances_ used_features = np.where(feature_importance > 0)[0] print(f" Features used: {used_features}") print(f" Feature importances: {feature_importance[used_features]}") # Demonstrate ensemble prediction process print(f"\nEnsemble Prediction Process") print("-" * 27) # Take a single test sample test_sample = X[:1] # First sample print(f"Test sample: {test_sample}") # Get individual tree predictions individual_predictions = [] individual_probabilities = [] for i, tree in enumerate(rf.estimators_): pred = tree.predict(test_sample) prob = tree.predict_proba(test_sample) individual_predictions.append(pred[0]) individual_probabilities.append(prob[0]) print(f"Tree {i+1}: predicts class {pred[0]}, probabilities {prob[0]}") # Show ensemble aggregation ensemble_pred = rf.predict(test_sample) ensemble_prob = rf.predict_proba(test_sample) print(f"\nEnsemble aggregation:") print(f" Individual predictions: {individual_predictions}") print(f" Majority vote result: class {ensemble_pred[0]}") print(f" Average probabilities: {ensemble_prob[0]}") print(f" Final prediction: class {ensemble_pred[0]}") # Demonstrate Out-of-Bag (OOB) scoring print(f"\nOut-of-Bag (OOB) Error Estimation") print("-" * 34) # Create Random Forest with OOB scoring enabled rf_oob = RandomForestClassifier(n_estimators=100, oob_score=True, random_state=42) rf_oob.fit(X, y) print(f"OOB Score: {rf_oob.oob_score_:.3f}") print(f"Training accuracy: {rf_oob.score(X, y):.3f}") print(f"OOB provides unbiased performance estimate without validation set") # Show feature importance from ensemble print(f"\nFeature Importance from Ensemble") print("-" * 32) feature_names = [f"Feature_{i}" for i in range(X.shape[1])] importance_scores = rf_oob.feature_importances_ for name, importance in zip(feature_names, importance_scores): print(f" {name}: {importance:.3f}") print(f" Most important feature: {feature_names[np.argmax(importance_scores)]}") print(f" Feature importances sum to: {np.sum(importance_scores):.3f}") This example reveals Random Forest's core mechanics. Bootstrap sampling creates diverse training sets for each tree. Random feature selection prevents trees from becoming too similar. Ensemble voting reduces overfitting while improving accuracy—a winning combination that builds on individual tree strengths while canceling their weaknesses. The out-of-bag samples provide honest performance estimates without touching your test set. Feature importance emerges naturally from the ensemble's collective splits, telling you which variables matter most. 1.2 The Unsupervised Challenge: Finding Structure in Unlabeled Data Important Consideration: While this approach offers significant benefits, you must understand its limitations and potential challenges as outlined in this section. Unsupervised learning tackles a different challenge. You're finding hidden patterns in data without labels. No target variable guides you. Clustering is the most common task—you partition data so similar points group together while dissimilar points separate. Traditional clustering algorithms depend critically on similarity or distance metrics. Got low-dimensional, continuous numerical features? Euclidean distance works beautifully. But real-world datasets present challenges that make simple metrics inadequate. High Dimensionality: In high-dimensional spaces (think genomic data with thousands of features), distance becomes meaningless. This is the "curse of dimensionality." All points become roughly equidistant from each other, making meaningful clusters nearly impossible to identify. Mixed Data Types: Marketing or healthcare datasets mix numerical features (age, income) with categorical ones (gender, location). How do you define coherent distance metrics that combine these disparate data types? It's non-trivial, and often arbitrary. Complex Cluster Shapes: K-Means assumes convex, spherical clusters. It struggles with irregular, non-linear, or elongated shapes. Your real clusters might wrap around each other like crescent moons, but K-Means will never find them. Feature Scaling and Noise: Distance-based algorithms are sensitive to feature scaling. Features with large ranges dominate distance calculations. Irrelevant or noisy features obscure true cluster structure, drowning out the signal you need. K-Means, while computationally efficient, suffers from all these limitations. Its reliance on minimizing within-cluster sum of squares based on Euclidean distance makes it unsuitable for complex, real-world clustering problems. This gap creates the need for robust similarity methods that adapt to specific data characteristics rather than imposing geometric assumptions that your data may violate. 1.3 Paradigm Shift: Random Forest for Similarity Measurement Random Forest clustering represents a paradigm shift. Instead of directly outputting cluster labels, Random Forest becomes a sophisticated, data-driven preprocessing tool. It generates powerful similarity metrics. This is fundamental reframing: before you cluster data, learn the most meaningful way to measure "closeness" between data points. The central output is the proximity matrix—an N×N matrix where each entry quantifies pairwise data point similarity, not based on predefined geometric distance but derived from Random Forest internal structure trained on cleverly constructed supervised proxy tasks. Your proximity score reflects how often the decision tree ensemble treats two points similarly—specifically, the frequency with which they land in the same terminal leaf nodes. This learned similarity metric directly addresses traditional approach limitations. Tree-based splits naturally handle mixed data types—categorical or numerical, it doesn't matter. They're invariant to monotonic feature scaling, so you don't waste time normalizing. They implicitly capture complex, non-linear relationships and feature interactions that simple distance metrics miss entirely. Once you generate this rich proximity matrix, you convert it to a dissimilarity matrix and feed it into any standard clustering algorithm that accepts distance matrices: hierarchical clustering, PAM, whatever fits your needs. Random Forest doesn't replace traditional clustering algorithms—it empowers them to perform effectively on complex, real-world datasets where defining suitable distance metrics is the primary challenge preventing success. Working Example: Random Forest Unsupervised Clustering (Breiman's Method) import numpy as np import matplotlib.pyplot as plt from sklearn.ensemble import RandomForestClassifier from sklearn.cluster import AgglomerativeClustering from sklearn.datasets import make_blobs, make_moons from sklearn.metrics import adjusted_rand_score, silhouette_score from scipy.cluster.hierarchy import dendrogram, linkage from scipy.spatial.distance import squareform def random_forest_clustering_breiman(X, n_estimators=100, random_state=42): """ Implement Breiman's method for Random Forest clustering """ n_samples, n_features = X.shape # Step 1: Create synthetic data (Class 2) by shuffling each feature independently X_synthetic = np.zeros_like(X) for feature in range(n_features): # Sample with replacement from marginal distribution X_synthetic[:, feature] = np.random.choice(X[:, feature], size=n_samples, replace=True) # Step 2: Combine real (Class 1) and synthetic (Class 2) data X_combined = np.vstack([X, X_synthetic]) y_combined = np.hstack([np.ones(n_samples), np.zeros(n_samples)]) # 1=real, 0=synthetic # Step 3: Train Random Forest classifier rf = RandomForestClassifier(n_estimators=n_estimators, random_state=random_state, oob_score=True) rf.fit(X_combined, y_combined) # Step 4: Extract proximity matrix for original data points only # Apply original data through each tree and track co-occurrences in leaves proximity_matrix = np.zeros((n_samples, n_samples)) for tree in rf.estimators_: # Get leaf assignments for original data leaves = tree.apply(X) # Count co-occurrences in same leaves for i in range(n_samples): for j in range(n_samples): if leaves[i] == leaves[j]: proximity_matrix[i, j] += 1 # Normalize by number of trees proximity_matrix = proximity_matrix / n_estimators return proximity_matrix, rf.oob_score_ # Generate test datasets np.random.seed(42) print("Random Forest Unsupervised Clustering (Breiman's Method)") print("=" * 56) # Dataset 1: Well-separated blobs (should work well) X_blobs, y_true_blobs = make_blobs(n_samples=150, centers=3, cluster_std=1.0, random_state=42) # Dataset 2: Non-linear structure (challenging for K-means) X_moons, y_true_moons = make_moons(n_samples=150, noise=0.1, random_state=42) # Dataset 3: Mixed data types simulation (categorical + numerical) # Create a dataset where some features are clearly categorical X_mixed = X_blobs.copy() # Convert first feature to categorical-like (discretize) X_mixed[:, 0] = np.round(X_mixed[:, 0] / 2) * 2 # Round to nearest even number datasets = [ (X_blobs, y_true_blobs, "Well-Separated Blobs"), (X_moons, y_true_moons, "Non-Linear Moons"), (X_mixed, y_true_blobs, "Mixed Data Types") ] results = {} for X, y_true, name in datasets: print(f"\nDataset: {name}") print("-" * 40) # Apply Breiman's Random Forest clustering proximity_matrix, oob_score = random_forest_clustering_breiman(X, n_estimators=100) print(f"Data shape: {X.shape}") print(f"True clusters: {len(np.unique(y_true))}") print(f"OOB Score: {oob_score:.3f}") # Interpret OOB score if oob_score > 0.7: structure_quality = "Strong structure detected" elif oob_score > 0.6: structure_quality = "Moderate structure detected" else: structure_quality = "Weak structure detected" print(f"Structure assessment: {structure_quality}") # Convert proximity to distance matrix distance_matrix = 1 - proximity_matrix # Apply hierarchical clustering on the distance matrix # Try different numbers of clusters best_score = -1 best_n_clusters = 2 for n_clusters in range(2, 6): clustering = AgglomerativeClustering(n_clusters=n_clusters, metric='precomputed', linkage='average') cluster_labels = clustering.fit_predict(distance_matrix) # Calculate silhouette score using original data sil_score = silhouette_score(X, cluster_labels) if sil_score > best_score: best_score = sil_score best_n_clusters = n_clusters if n_clusters == len(np.unique(y_true)): # Calculate ARI when we know true number of clusters ari_score = adjusted_rand_score(y_true, cluster_labels) print(f" {n_clusters} clusters: Silhouette={sil_score:.3f}, ARI={ari_score:.3f}") else: print(f" {n_clusters} clusters: Silhouette={sil_score:.3f}") print(f"Best clustering: {best_n_clusters} clusters (Silhouette={best_score:.3f})") # Store results for visualization final_clustering = AgglomerativeClustering(n_clusters=best_n_clusters, metric='precomputed', linkage='average') final_labels = final_clustering.fit_predict(distance_matrix) results[name] = { 'X': X, 'y_true': y_true, 'y_pred': final_labels, 'proximity_matrix': proximity_matrix, 'distance_matrix': distance_matrix, 'oob_score': oob_score, 'best_silhouette': best_score } # Demonstrate proximity matrix properties print(f"\nProximity Matrix Properties") print("-" * 27) example_prox = results["Well-Separated Blobs"]['proximity_matrix'] print(f"Matrix shape: {example_prox.shape}") print(f"Diagonal elements (should be 1.0): {example_prox.diagonal()[:5]}") print(f"Matrix symmetry check: {np.allclose(example_prox, example_prox.T)}") print(f"Value range: [{example_prox.min():.3f}, {example_prox.max():.3f}]") # Show some high and low proximity pairs flat_indices = np.triu_indices_from(example_prox, k=1) # Upper triangle, excluding diagonal proximities = example_prox[flat_indices] high_prox_idx = np.argmax(proximities) low_prox_idx = np.argmin(proximities) i_high, j_high = flat_indices[0][high_prox_idx], flat_indices[1][high_prox_idx] i_low, j_low = flat_indices[0][low_prox_idx], flat_indices[1][low_prox_idx] print(f"Highest proximity: points {i_high}-{j_high} = {proximities[high_prox_idx]:.3f}") print(f"Lowest proximity: points {i_low}-{j_low} = {proximities[low_prox_idx]:.3f}") # Summary insights print(f"\nKey Insights:") print("- High OOB scores indicate strong data structure suitable for clustering") print("- Proximity matrix captures complex similarities beyond Euclidean distance") print("- Method works well with mixed data types and non-linear cluster shapes") print("- Distance matrix from proximities works with any clustering algorithm") print("- Synthetic data generation quality affects performance") This implementation demonstrates Breiman's original Random Forest clustering method in action. The algorithm creates synthetic data by destroying correlations between features—sampling each feature's marginal distribution independently to create a null hypothesis version of your data. It trains a classifier to distinguish real from synthetic data, forcing the forest to learn which feature combinations are natural and which are artificial. Then it extracts a proximity matrix from tree co-occurrences—points that consistently land in the same leaves across many trees must be genuinely similar. The resulting distance matrix captures complex data relationships that traditional metrics miss entirely, enabling effective clustering on challenging datasets with non-linear structures or mixed data types that would confuse simpler approaches. 2. Technical Deep Dive: From Supervised Predictions to Unsupervised Proximities The transformation of the supervised Random Forest algorithm into a tool for unsupervised learning is a clever methodological leap. This section delves into the technical mechanics of this process. We begin with Leo Breiman's original formulation. We progress to more modern, refined approaches. The core of this transformation lies in creating a proxy supervised task that forces the Random Forest to learn the intrinsic dependency structure of the unlabeled data, and the proximity matrix emerges as a byproduct of this learning process, serving as a rich measure of similarity. 2.1 Breiman's Original Method: The Synthetic Data Approach The seminal method for unsupervised Random Forest, as proposed by Leo Breiman, hinges on converting the unlabeled data problem into an artificial two-class classification task. How? Through the generation of synthetic data that serves as a contrasting "unstructured" class. Step 1: Creating an Artificial Two-Class Problem begins with designating the original, unlabeled dataset as "Class 1," representing authentic data with all inherent correlations and dependency structures intact. This establishes one side of the binary classification task. This task will force the Random Forest to learn the data's internal structure. Step 2: Generating Synthetic Data creates a contrasting "Class 2" through careful synthetic data generation. You preserve marginal distributions while destroying correlations. For each feature column, sample values with replacement from the marginal distribution of that feature in the original data. Perform sampling independently for each feature. This independent sampling creates a profound effect: the synthetic "Class 2" data maintains identical univariate distributions for each feature but completely destroys correlation and dependency structures among features—the very relationships that define your data's natural structure. Consider a two-dimensional dataset. Boron and Calcium features are positively correlated. The original "Class 1" data shows a cloud of points elongated along a diagonal axis reflecting the correlation structure. The synthetic "Class 2" data, created by independently sampling from Boron and Calcium values, appears as a diffuse, circular cloud exhibiting no correlation. The synthetic data essentially represents a null hypothesis: what would the data look like if the variables were completely independent? Step 3: Training a Standard RF Classifier You combine the original data (Class 1) and the synthetic data (Class 2) into a single dataset. Train a standard Random Forest classifier on this combined dataset. The goal? Distinguish between the "real" and "synthetic" data points. In essence, the Random Forest learns to identify the patterns, interactions, and dependencies present in the real data but absent in the synthetic data—it learns what makes your data natural rather than random. The splits in each decision tree are chosen to create nodes that are as homogeneous as possible in terms of their "real" versus "synthetic" makeup. The Role of OOB Error as a Diagnostic The out-of-bag error from this classification task serves as a powerful diagnostic tool. It assesses the degree of structure in the original data. The OOB error is an unbiased estimate of the model's generalization error. You calculate it using the data points left out of the bootstrap sample for each tree. If the OOB misclassification rate is low (significantly below 50%), the Random Forest can successfully distinguish the real data from the synthetic data. This indicates strong, non-random dependencies in the original data. It's well-suited for clustering. If the OOB rate is high, approaching 50%, the real data isn't easily distinguishable from the randomly generated data. This suggests a lack of strong dependency structure. Any attempt to cluster the data may yield meaningless results—you're finding patterns in noise. This proxy task isn't an end in itself. Its primary purpose? Generate a forest whose structure is finely tuned to the dependencies within the original data. You then leverage this structure to compute the proximity matrix. 2.2 The Proximity Matrix: Quantifying Similarity The key output from the unsupervised Random Forest procedure isn't a set of cluster labels. It's the proximity matrix, which quantifies the similarity between every pair of data points from the original dataset. Definition and Calculation After you train the forest on the combined real-and-synthetic dataset, pass all of the original data points (Class 1) down each tree. The proximity between any two data points, i and j, is defined as the proportion of trees in the forest in which these two points fall into the same terminal (leaf) node—a simple but powerful concept. The mathematical formulation is as follows: prox(i,j) = (1/N_trees) × Σ(t=1 to N_trees) I(leaf(i,t) = leaf(j,t)) Here N_trees is the total number of trees in the forest, leaf(i,t) is the index of the terminal node for data point i in tree t, and I(⋅) is the indicator function, which equals 1 if the condition is true and 0 otherwise. Visual Description: Consider a single decision tree in the forest and ten original data points. Suppose points {1, 5, 8} land in leaf node A, points {2, 9} land in leaf node B, points {3, 4, 6} land in leaf node C, and points {7, 10} land in leaf node D. For this single tree, the partial proximity matrix has a 1 at entry (1, 5), (5, 8), (1, 8), (2, 9), and so on—indicating shared leaves. It has a 0 at entry (1, 2), (5, 9), and other non-shared combinations. The final proximity matrix is the element-wise average of these binary matrices over all trees in the forest, smoothing out individual tree idiosyncrasies. Properties and Conversion to Dissimilarity The resulting N×N proximity matrix has several important properties. It's symmetric (prox(i,j)=prox(j,i)). It's positive definite. Its values are bounded between 0 and 1. The diagonal elements are always 1, as every point is always in the same leaf node as itself—perfect self-similarity. Most clustering algorithms operate on distances or dissimilarities rather than similarities. You typically convert the proximity matrix into a dissimilarity matrix. The most common transformation? dist(i,j) = 1 - prox(i,j) This dissimilarity matrix, where values closer to 0 indicate higher similarity and values closer to 1 indicate lower similarity, can then serve as input for a subsequent clustering algorithm—hierarchical clustering, PAM, DBSCAN with precomputed metrics, whatever you prefer. 2.3 The sidClustering Method: A Modern Alternative Breiman's method is foundational. But it has a significant theoretical weakness. Its performance can be highly dependent on the method you use to generate the synthetic data. An inappropriate choice for the reference distribution leads to a suboptimal proxy task. You get a less meaningful proximity matrix. The sidClustering method was developed to address this limitation. How? By reframing the unsupervised problem in a way that avoids synthetic data generation entirely. Core Idea and Critique of Breiman's Method The core idea of sidClustering? Transform the unsupervised problem into a multivariate regression problem, rather than a binary classification problem. This shift eliminates the dependency on an external, artificially generated dataset. It makes the process more self-contained. It's potentially more robust. Sidification: A Novel Feature Engineering Process The method is based on a two-step feature engineering process called "sidification" (Staggered Interaction Data): Staggering (SID Main Features): You transform the original features, X=(X₁,…,Xₐ), into a new set of features, Y=(Y₁,…,Yₐ), called the SID main effects. You do this by shifting and "staggering" the features so their value ranges become mutually exclusive. For example, if X₁ ranges from [0, 10] and X₂ ranges from [5, 15], you could transform them such that Y₁ is in [0, 10] and Y₂ is in [15.01, 25.01]—no overlap whatsoever. This is a monotonic transformation. Since decision trees are invariant to such transformations, you lose no information. Interaction Features (SID Interaction Features): You create a new set of predictor variables, Z, by forming all pairwise interactions of the staggered main features (e.g., Z_jk = Y_j × Y_k). The non-overlapping ranges of the Y features ensure a unique relationship between the original features and these new interaction terms—each interaction value uniquely identifies which original features contributed to it. Multivariate Random Forest (MVRF) for Structure Learning You train a multivariate random forest (MVRF) to solve a regression problem: predicting the SID main features (Y) using the SID interaction features (Z) as predictors. The underlying logic? If the original data has strong internal structure (the features aren't independent), then the interactions between features (Z) will be predictive of the features themselves (Y). The MVRF finds splits on the interaction features (Z) that effectively reduce the variance (impurity) in the main features (Y). These splits naturally separate data points into groups with distinct structural relationships, thereby identifying clusters without ever seeing labels or synthetic data. The "RF Distance": A More Sensitive Metric Instead of the binary proximity score, sidClustering introduces a more nuanced, topology-based distance metric. This "RF distance" measures the dissimilarity between two data points based on their path separation within a tree, not just their final destination. It's calculated based on the number of splits separating the two points' terminal nodes from their lowest common ancestor node, relative to the number of splits from the root node—a continuous measure of how long two points traveled together before diverging. For example, two points that split apart high up near the root node are considered more dissimilar than two points that travel far down the tree together before splitting into adjacent leaf nodes. Even though in both cases their traditional proximity for that tree would be 0, the RF distance captures the difference. This refined metric can capture finer-grained cluster structures that the original proximity measure might miss entirely. The evolution from Breiman's method to sidClustering represents a significant conceptual advance. You move from a proxy task based on an external and potentially biasing reference distribution (synthetic data) to a self-referential, regression-based task focused purely on learning the internal dependency structure of the data—a more principled approach that makes the method theoretically more robust and less susceptible to arbitrary modeling choices that could skew your results. 3. Practical Implementation and Workflow Translating the theory of Random Forest clustering into practice requires familiarity with specific libraries and workflows. They differ significantly between popular data science environments like R and Python. This section provides a practical guide to implementing these methods. We'll highlight the key packages, code structures, and common datasets used for benchmarking. Your choice of implementation has considerable implications for both ease of use and computational efficiency—choose wisely. 3.1 Implementation in R The R programming language, particularly through the randomForest package developed in part by Breiman and Cutler, offers the most direct and native implementation of the original unsupervised Random Forest method. The functionality is built directly into the core function. This makes the workflow straightforward. Core Package and Workflow The primary tool? The randomForest package. You trigger the unsupervised mode by setting the response variable y to NULL and enabling the proximity=TRUE argument. A typical workflow in R proceeds as follows: Load Data: Begin by loading the dataset into a data frame. The iris dataset is a common choice for demonstration purposes—simple, well-understood, available everywhere. Instantiate and Train the Model: Call the randomForest() function. The key is to provide only the feature matrix x and set y = NULL. The proximity = TRUE flag instructs the function to compute and store the proximity matrix. Recommend a large number of trees (ntree) for stability—10,000 is common. library(randomForest) iris_data <- iris[,1:4] rf.fit <- randomForest(x = iris_data, y = NULL, ntree = 10000, proximity = TRUE, oob.prox = TRUE) Extract the Proximity Matrix: The computed proximity matrix is stored as an element within the returned model object—easy access. proximity_matrix <- rf.fit$proximity Convert to a Distance Matrix: Convert the similarity scores into dissimilarities for use in clustering algorithms. distance_matrix <- as.dist(1 - proximity_matrix) Apply a Clustering Algorithm: Use the distance matrix as input for a clustering method. Hierarchical clustering (hclust) is a natural choice—it works beautifully with precomputed distances. hclust.rf <- hclust(distance_matrix, method = "ward.D2") Extract Cluster Assignments: Cut the resulting dendrogram at a specified number of clusters (k). rf.cluster <- cutree(hclust.rf, k = 3) Visualize Results: Multidimensional Scaling (MDS) is an excellent technique. It visualizes the high-dimensional relationships captured in the distance matrix in a 2D plot. mds.stuff <- cmdscale(distance_matrix, eig=TRUE, x.ret=TRUE) mds.values <- mds.stuff$points mds.data <- data.frame(X=mds.values[,1], Y=mds.values[,2], Cluster=as.factor(rf.cluster), Species=iris$Species) ggplot(data=mds.data, aes(x=X, y=Y, color=Cluster, shape=Species)) + geom_point() This streamlined workflow makes R the environment of choice for quick, exploratory analysis using this technique. The integration is seamless. The code is concise. You get results fast. 3.2 Implementation in Python In Python, the implementation is less direct. The most popular machine learning library, scikit-learn, doesn't have a built-in option for calculating the proximity matrix. However, the necessary components are available to compute it manually. More modern libraries like TensorFlow Decision Forests have reintroduced this functionality in a highly efficient manner—a welcome development. Scikit-learn Workflow The sklearn.ensemble.RandomForestClassifier requires a manual post-processing step to derive the proximity matrix. The key is the .apply() method—your gateway to leaf node indices. Train a Random Forest Model: First, train a standard RandomForestClassifier or RandomForestRegressor. While the ideal approach involves setting up the "real vs. synthetic" proxy task, you can also generate a proximity matrix from a supervised model to explore the data structure with respect to the target variable. Get Leaf Indices: Use the .apply(X) method on the trained model and the data X. This method returns an integer array of shape [n_samples, n_estimators], where each element [i, j] is the index of the leaf node that sample i was sorted into in tree j—exactly what you need. Compute Proximity Matrix Manually: With the leaf indices matrix, you compute the proximity matrix by iterating through all pairs of samples and counting the number of times they share a leaf node, then dividing by the total number of trees. import numpy as np from sklearn.ensemble import RandomForestClassifier from sklearn.datasets import load_iris iris = load_iris() X = iris.data y = iris.target model = RandomForestClassifier(n_estimators=500, random_state=42) model.fit(X, y) terminals = model.apply(X) def proximity_matrix(model, X, normalize=True): terminals = model.apply(X) n_trees = terminals.shape[1] prox_mat = np.zeros((X.shape[0], X.shape[0])) for i in range(n_trees): tree_terminals = terminals[:, i] prox_mat += np.equal.outer(tree_terminals, tree_terminals) if normalize: prox_mat = prox_mat / n_trees return prox_mat prox_mat_sklearn = proximity_matrix(model, X) This manual approach can be computationally intensive for large datasets. You're performing operations on a potentially large [n_samples, n_samples] matrix within a loop. Not ideal for production. TensorFlow Decision Forests (TF-DF) Workflow TF-DF provides a more optimized and modern solution for this task in Python. It's suitable for larger-scale problems. Train a TF-DF Model: Train a tfdf.keras.RandomForestModel on the dataset. TF-DF works for classification or regression tasks. import tensorflow_decision_forests as tfdf import pandas as pd train_ds = tfdf.keras.pd_dataframe_to_tf_dataset(dataset_df, label="my_label") model = tfdf.keras.RandomForestModel() model.fit(train_ds) Get Leaf Indices Efficiently: Use the model.predict_get_leaves() method. This is a highly optimized function. It returns the leaf indices matrix, similar to scikit-learn's .apply() but often much faster—particularly on larger datasets. test_ds = tfdf.keras.pd_dataframe_to_tf_dataset(test_df, label="my_label") leaves = model.predict_get_leaves(test_ds) Compute Proximity Matrix: Use the returned leaves array to compute the proximity matrix. The logic is identical to the scikit-learn approach. You benefit from the faster initial step. def compute_tfdf_proximity(leaves): n_examples = leaves.shape[0] n_trees = leaves.shape[1] proximities = np.zeros((n_examples, n_examples)) for i in range(n_examples): for j in range(i, n_examples): proximities[i, j] = np.sum(leaves[i, :] == leaves[j, :]) / n_trees proximities[j, i] = proximities[i, j] return proximities prox_mat_tfdf = compute_tfdf_proximity(leaves) Visualize with t-SNE: The resulting distance matrix (1 - prox_mat_tfdf) can be passed directly to visualization tools like sklearn.manifold.TSNE by specifying metric="precomputed". The clear difference in implementation highlights a key consideration for practitioners. For serious applications in Python, leverage a library with optimized, built-in support for leaf-node extraction like TF-DF. It's vastly preferable to the manual, less efficient approach required with scikit-learn—both for development time and computational performance. 3.3 Benchmarking Datasets The choice of dataset is crucial for evaluating and demonstrating the capabilities of Random Forest clustering. Toy Datasets: The iris dataset is ubiquitous in tutorials. Why? Simplicity and well-defined three-class structure. However, with only four numerical features, it fails to showcase the algorithm's primary strengths in handling high-dimensional, mixed-type data. Its main utility is for pedagogical code demonstration—learning the mechanics, not testing the limits. Biomedical Data: This is a domain where RF clustering truly excels. Multi-omics datasets, such as those from The Cancer Genome Atlas (TCGA), are a prime example. These datasets often contain thousands of features (gene expression levels, DNA methylation sites, protein abundances) for a few hundred patient samples. This is a classic p≫n problem—more features than samples. RF clustering is used for disease subtyping—identifying patient subgroups with different molecular profiles, which may correspond to different clinical outcomes or treatment responses. Customer and Behavioral Data: Datasets for customer segmentation are another ideal use case. These typically contain a mix of demographic features (categorical), transactional data (numerical), and website interaction metrics (numerical). RF clustering can uncover non-obvious customer personas by learning a similarity metric that balances these different data types—something geometric distance can't handle elegantly. Financial and Security Data: In fraud detection, you cluster datasets of transactions to find anomalous groups. Fraudulent activities often manifest as small, distinct clusters. They have low proximity to the large clusters of legitimate transactions. The forest naturally isolates unusual patterns. 4. Problem-Solving Capabilities and Use Cases The theoretical strengths of Random Forest clustering—its ability to handle high-dimensional, mixed-type data and capture complex feature interactions—translate into powerful problem-solving capabilities across various domains. The primary value proposition? Its effectiveness on "messy," real-world data that violates the assumptions of simpler clustering algorithms. You should understand it not as a universal replacement for other methods, but as a specialized tool for complex exploratory analysis where standard approaches fail. 4.1 High-Dimensional Biomedical Data Analysis One of the most impactful applications of RF clustering is in the field of bioinformatics and computational biology. Particularly for the analysis of multi-omics data. Use Case: Disease Subtyping Modern medicine is moving towards precision medicine. Diseases like cancer are understood not as monolithic entities but as collections of distinct molecular subtypes. Multi-omics datasets, which measure thousands of biological variables (genes, proteins, metabolites) for each patient, provide the raw material for this stratification. These datasets are characterized by the "p≫n" problem (many more features than samples). High levels of noise. A mix of data types. They're intractable for traditional distance-based clustering methods—simple metrics drown in the dimensionality. Problem-Solving Capability: RF clustering excels in this environment. Its intrinsic variable selection process sifts through thousands of genomic features. It gives more weight to those that define coherent structure in the data. The resulting proximity metric provides a robust measure of patient-to-patient similarity based on complex molecular signatures, not just simple geometric distance in some arbitrary feature space. This allows researchers to identify patient subgroups that may respond differently to therapies or have different prognoses. You can discover these groups even when they're not apparent from any single data type alone—the forest integrates information across all measured variables to reveal hidden patterns. For example, you can cluster tumor samples based on gene expression profiles to discover novel cancer subtypes that traditional clinical markers miss entirely. 4.2 Customer Segmentation and Behavioral Analysis In the commercial world, understanding customer behavior is paramount. Targeted marketing. Product development. Customer relationship management. RF clustering provides a sophisticated tool for this task. Use Case: Market Segmentation Businesses collect vast amounts of customer data. Demographics (age, location; often categorical). Purchasing history (purchase frequency, average order value; numerical). Online behavior (time on site, pages visited; numerical). The goal of segmentation? Group customers into meaningful personas that drive strategy. Problem-Solving Capability: Traditional methods like K-Means require extensive and often arbitrary preprocessing to handle this mix of data types. One-hot encoding categorical variables. Scaling numerical ones. It's a mess of preprocessing decisions. RF clustering bypasses this by working directly with the mixed data. It uncovers non-obvious segments by learning how different features interact to define similarity—not just which features are close in value, but how they combine to create distinct behavioral patterns. For instance, it might identify a cluster of "urban, high-income, infrequent but high-value buyers" and distinguish them from "suburban, middle-income, frequent but low-value buyers"—segments that might look similar on some individual dimensions but are fundamentally different in their behavior. This enables highly tailored marketing campaigns for each group, improving conversion rates and customer satisfaction. 4.3 Anomaly and Outlier Detection The proximity matrix generated by the Random Forest can be repurposed for anomaly or outlier detection. This task is philosophically similar to that performed by the specialized Isolation Forest algorithm. Use Case: Identifying Novel or Fraudulent Events Anomalies are, by definition, data points that are dissimilar to the majority of the data. In the context of RF clustering, an outlier is a point that has low average proximity to all other points in the dataset—it's consistently isolated across many trees. Problem-Solving Capability: After you compute the N×N proximity matrix, calculate an "outlier score" for each point. Take one minus the average proximity of that point to all others. Points with high outlier scores are candidates for investigation. In financial fraud detection, a fraudulent transaction might involve a unique combination of merchant type, transaction amount, time of day, and location. This uniqueness causes it to be isolated in the decision trees. It lands in terminal nodes with few other points. Consequently, it has very low proximity scores to the vast majority of legitimate transactions. This makes it easily flaggable as an anomaly—a signal that stands out clearly from the noise of normal transactions without requiring you to specify what constitutes "normal" in advance. 4.4 Data Exploration and Visualization Understanding the global structure of a high-dimensional dataset is a fundamental challenge in data science. RF clustering provides a powerful method for creating low-dimensional visualizations that preserve complex, non-linear relationships. Use Case: Dimensionality Reduction for Visualization Methods like Principal Component Analysis (PCA) are effective for linear dimensionality reduction. But they fail to capture more intricate data structures. The dissimilarity matrix derived from RF proximities can be used as direct input for non-linear visualization techniques like Multidimensional Scaling (MDS) or t-Distributed Stochastic Neighbor Embedding (t-SNE). Problem-Solving Capability: Using the RF-derived distance with MDS or t-SNE produces a 2D or 3D scatter plot. The distance between points reflects the sophisticated, model-learned similarity, not just Euclidean distance in the original high-dimensional space. This often results in visualizations that show clearer separation between clusters. They reveal more meaningful patterns than PCA—particularly when the structure is non-linear. For example, a researcher could use this technique to visualize a dataset of thousands of text documents, represented as high-dimensional TF-IDF vectors, to see how different topics and themes naturally group together in a 2D space. This provides an intuitive map of the document collection that would be impossible to see in the original 10,000-dimensional space—a navigation tool for exploring large corpora. In all these applications, the core strength of RF clustering remains consistent. It provides a robust and adaptive way to define similarity in complex datasets. It unlocks the ability to find meaningful structure where simpler methods would fail—where geometric distance is meaningless, where data types mix chaotically, where cluster shapes defy simple assumptions. Consider it a primary tool for exploratory clustering on any tabular dataset of moderate size that contains a mix of feature types or is suspected to have non-linear structures that standard metrics can't capture. 5. Strengths and Limitations Like any advanced algorithm, Random Forest clustering possesses a distinct set of strengths and weaknesses that define its optimal application profile. It's a powerful tool. Deep, exploratory analysis on complex, medium-sized datasets? Perfect. Large-scale, low-latency production systems? Often unsuitable. A clear understanding of this trade-off between performance on complex data and computational scalability is crucial for any practitioner—know when to use it and when to look elsewhere. 5.1 Key Strengths The primary advantages of RF clustering stem from its foundation in ensemble tree-based methods. This grants it remarkable flexibility and robustness. Handles Mixed Data Types: The algorithm can natively process datasets containing both numerical and categorical features. The decision tree splitting mechanism works on a per-feature basis. This obviates the need for extensive preprocessing steps like one-hot encoding, which can artificially inflate dimensionality and create sparse, unwieldy feature spaces. Robustness to Scaling and Outliers: RF clustering is invariant to monotonic transformations of numerical features. This means scaling or normalization (min-max scaling, standardization) isn't required. The rank order of values is what matters for tree splits, not the magnitude. Furthermore, the ensemble nature and the use of bootstrap sampling make the method highly robust to outliers. Their influence is confined to a subset of trees. It's averaged out in the final proximity calculation. Outliers don't dominate the results. Implicit Feature Selection: During the construction of the proxy supervised model, the tree-building process naturally prioritizes features that are most effective at reducing impurity. That means distinguishing real from synthetic data in Breiman's method. Features that are pure noise or irrelevant to the data's dependency structure are rarely selected for splits. They contribute minimally to the final proximity matrix. This serves as a powerful, built-in form of feature selection—the algorithm automatically focuses on what matters. Captures Non-Linearity and Interactions: The hierarchical, partitioning nature of decision trees allows the model to capture complex, non-linear relationships and high-order interactions between features. The proximity metric reflects this complexity. Two points are considered similar if they follow similar decision paths through the trees—a far more sophisticated criterion than simple geometric proximity in the original feature space. The forest learns which feature combinations matter, not just which individual features are similar. No a priori Assumptions on Cluster Shape: Unlike algorithms such as K-Means, which are biased towards finding spherical clusters of similar variance, RF clustering makes no assumptions about the geometric shape of the clusters. The final clusters, identified by applying methods like hierarchical clustering to the RF dissimilarity matrix, can be of arbitrary shape and size—crescents, elongated blobs, nested structures, whatever the data actually contains rather than what your algorithm expects. 5.2 Inherent Limitations Despite its power, the method is constrained by significant computational and interpretability challenges. These limit its applicability. Computational and Memory Complexity: The most significant drawback is its scalability. The core of the method involves computing and storing an N×N proximity matrix, where N is the number of samples. The time complexity for generating this matrix is roughly O(N²⋅n_trees). Its space complexity is O(N²). This quadratic scaling with the number of samples makes the full method computationally prohibitive for datasets with more than a few tens of thousands of data points. The proximity matrix can easily exceed available RAM—100,000 samples means a 10 billion element matrix, requiring 80GB just to store as double-precision floats before you even start computing. Interpretability of the Proximity Metric: You can profile and analyze the final clusters. But the proximity metric itself is a "black box." It's extremely difficult to articulate in simple terms why the forest deemed two specific data points to be highly similar. The similarity score is an aggregated result of thousands of splits across hundreds of trees. Making a direct, human-interpretable explanation of a single proximity value is nearly impossible without specialized XAI techniques—you know the similarity, but explaining it requires reconstruction of the decision paths. Sensitivity of Breiman's Original Method: The classic approach relies on generating synthetic data to create the proxy classification task. The performance and meaningfulness of the resulting proximity matrix can be highly sensitive to the method you use for this data generation. A poorly chosen reference distribution leads to a flawed proxy task. You get a useless similarity metric. This introduces a critical, and sometimes difficult, modeling choice into the workflow—how do you generate synthetic data that properly represents the null hypothesis for your specific domain? Bias Towards High Cardinality Features: Like standard decision trees, the splitting criteria used in Random Forests (such as Gini impurity) can be biased towards selecting categorical features with a large number of unique levels. This can cause such features to have an undue influence on the tree structures and the resulting proximity scores—a feature with 100 categories gets many more opportunities to create "good" splits than one with 2 categories, even if the latter is more meaningful for your actual structure. These limitations define a clear application niche for RF clustering. It's an unparalleled tool for in-depth analysis. You uncover robust patterns in moderately sized, complex tabular data. The insights gained from this exploratory phase can then inform the development of simpler, more scalable models for production environments. For instance, a practitioner might use RF clustering on a 10,000-customer sample to identify key behavioral segments and the features that define them—an exploratory deep dive. This knowledge could then be used to engineer a few powerful features for a logistic regression or K-Means model to be deployed on a database of 10 million customers. The RF clustering step is for generating insight. It's not for direct, large-scale deployment. Use it to learn, then build production systems based on what you learned. Conclusions Best Practice: Following these recommended practices will help you achieve optimal results and avoid common pitfalls. The application of the Random Forest algorithm to unsupervised clustering represents a significant departure from traditional distance-based methods. By reframing the problem of finding structure in unlabeled data as one of learning a sophisticated, data-driven similarity metric, this technique provides a powerful solution for complex, real-world datasets that are often intractable for simpler algorithms—datasets where geometric distance fails to capture what makes points truly similar. The analysis reveals that the primary strength of RF clustering lies in its ability to handle "messy" data. High-dimensional feature spaces. A mix of numerical and categorical variables. Complex non-linear relationships. It requires no extensive data preprocessing. The proximity matrix, derived from the collective wisdom of an ensemble of trees, captures a more nuanced and robust measure of similarity than standard geometric distances—it learns what similarity means for your specific data rather than imposing a predefined notion. This makes it an invaluable tool for exploratory data analysis in domains like bioinformatics, customer segmentation, and anomaly detection, where discovering non-obvious patterns is a key objective and where standard methods consistently fail to reveal meaningful structure. However, this power comes at a significant computational cost. The quadratic scaling of time and memory complexity with the number of samples renders the full method impractical for very large datasets. This positions RF clustering not as a general-purpose, scalable production algorithm, but as a specialized instrument for deep analysis on moderately sized data—a research and exploration tool rather than a deployment solution. The insights gleaned from this intensive exploratory phase can then be used to engineer features or inform the design of more scalable models suitable for deployment, creating a workflow where RF clustering enables production systems rather than being the production system itself. The evolution of the technique from Breiman's original synthetic data approach to more modern, robust methods like sidClustering demonstrates a maturation of the underlying theory. Furthermore, the integration of RF clustering with cutting-edge developments in federated learning, explainable AI (XAI), and machine unlearning signals a vibrant future for the algorithm. These advancements are mitigating its key limitations—privacy concerns, interpretability, and fairness—transforming it from a statistical "black box" into a component of transparent and responsible AI systems that can explain their similarity judgments and protect individual privacy. For the practitioner, the key takeaway is that Random Forest clustering should be a primary tool in your arsenal for unsupervised learning on complex tabular data. Its successful application requires a shift in mindset. Hyperparameter tuning should aim for the stability of the proximity matrix rather than predictive accuracy—you're not predicting, you're learning similarity. The choice of implementation has significant consequences for efficiency—R for quick exploration, TF-DF for serious Python work, never raw scikit-learn for production proximity calculations. By understanding its unique strengths, limitations, and the emerging ecosystem of tools for its interpretation and application, data scientists can leverage Random Forest clustering to uncover deep and meaningful structure in their most challenging datasets—the ones where simpler methods give up and return meaningless results.
