Retrieval-Augmented Generation: The Complete Guide from Foundations to Production

Your LLM is Brilliant but Blind

Your Large Language Model can write poetry, solve coding problems, and explain quantum physics. Ask it about yesterday's news? Complete blank. Your company's latest policy update? Nothing. A document in your private database? Radio silence.

This isn't a bug. It's how LLMs work.

Large Language Models are trained on static datasets with knowledge cutoffs. They can't access new information. They can't see private documents. They can't pull real-time data. When they don't know something, they often make it upwhat researchers call hallucinationrather than admit ignorance.

Retrieval-Augmented Generation (RAG) changes everything.

Instead of relying on the LLM's frozen knowledge, RAG connects it to live, authoritative information sources. Think of it as giving your AI a search engine, a library card, and perfect fact-checking skillsall working together seamlessly. The result? AI that can answer questions about your latest financial reports, yesterday's research papers, or proprietary technical documentation with the same fluency it brings to general knowledge tasks.

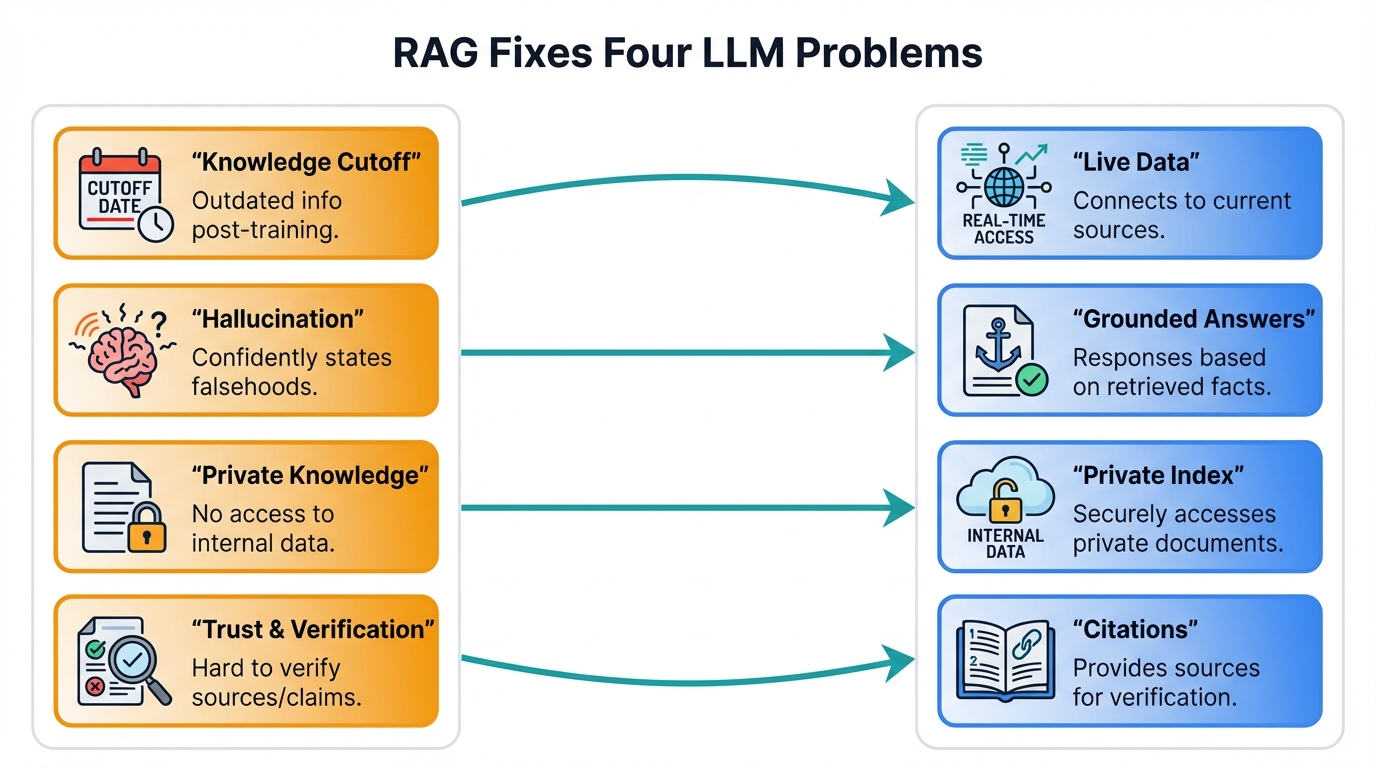

How RAG Solves the Four Critical LLM Problems

Problem 1: Knowledge Cutoff Blindness

The Issue: Your LLM's knowledge stopped the day its training ended. It knows nothing about events, discoveries, or changes since then.

Real Impact: A customer service bot can't help with new product features. A financial analyzer can't discuss recent market movements. A research assistant can't cite the latest studies.

How RAG Fixes It: RAG connects your LLM to live data sourcesnews APIs, internal databases, document repositories. The AI gets current information every time it responds.

Problem 2: Hallucination Epidemic

The Issue: LLMs generate plausible-sounding but completely fabricated information when they don't know the answer.

Real Impact: False statistics in reports. Invented citations in research. Made-up policy details in legal documents.

How RAG Fixes It: RAG grounds responses in retrieved documents. If the information isn't in the source material, the AI can say "I don't know" instead of inventing answers.

Problem 3: Private Knowledge Vacuum

The Issue: LLMs know what's on the public internet but nothing about your proprietary informationinternal docs, customer data, specialized research.

Real Impact: Can't answer questions about company procedures. Can't analyze private datasets. Can't reference confidential research.

How RAG Fixes It: RAG indexes your private documents and makes them searchable. Your AI becomes an expert on your organization's unique knowledge.

Problem 4: Trust and Verification Crisis

The Issue: LLMs are black boxes. When they give you information, you can't verify where it came from or check its accuracy.

Real Impact: Users can't trust AI-generated content. Compliance teams can't audit AI responses. Decision-makers can't verify critical information.

How RAG Fixes It: RAG provides citations. Every response shows exactly which documents were used to generate the answer, enabling verification and building trust.

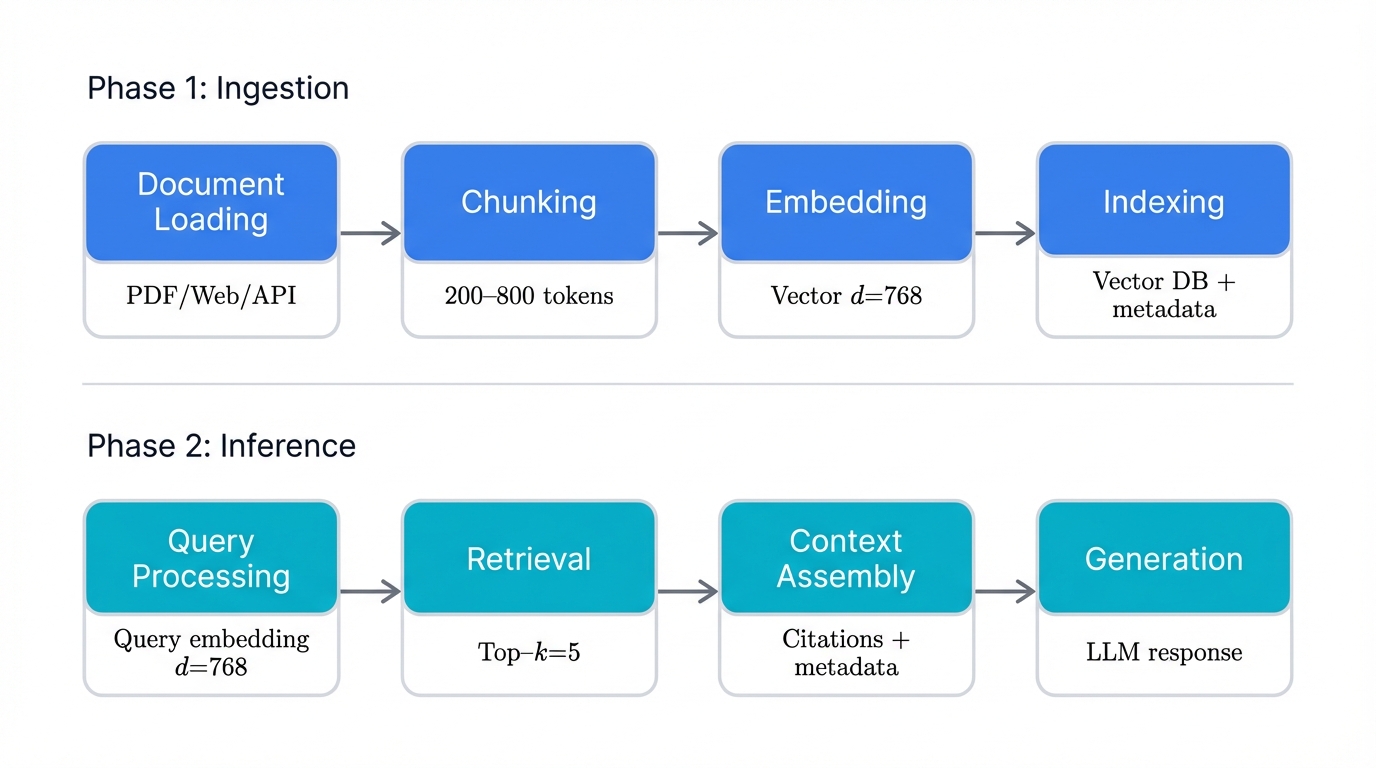

The RAG Architecture: How It Actually Works

RAG operates through two main phases: ingestion (preparing your knowledge base) and inference (answering queries in real-time).

Phase 1: Ingestion Pipeline (Building Your Knowledge Base)

This happens offline and sets up your searchable knowledge repository:

Step 1: Document Loading involves pulling in documents from various sources. PDFs, websites, databases, APIsall creating a comprehensive information repository. The system must handle different formats and structures while maintaining data integrity. Then it cleans and preprocesses the content to ensure consistent quality and searchability.

Step 2: Chunking breaks documents into smaller, searchable pieces that optimize retrieval performance. The system must balance chunk size carefully. Too small? Not enough context. Too large? Noisy, unfocused retrieval results. Most importantly, chunking must maintain semantic coherence within each piece, ensuring that related concepts stay together.

Step 3: Embedding converts text chunks into high-dimensional vectors that represent their meaning in mathematical space. This process captures semantic meaning rather than relying on simple keyword matching. The system can understand conceptual relationships between different pieces of text. The embeddings enable similarity-based search where questions can retrieve relevant information even when they don't share exact words with the source documents.

Step 4: Indexing stores embeddings in a vector database optimized for high-dimensional similarity search. This enables fast retrieval at scale even with millions of documents. The index maintains crucial metadata links back to source documents, allowing the system to trace retrieved information to its original context and provide accurate citations for generated responses.

Phase 2: Inference Pipeline (Real-Time Question Answering)

This happens when users ask questions:

Step 1: Query Processing converts user questions into searchable format. Apply query transformations if needed. Generate query embedding.

Step 2: Retrieval searches vector database for most relevant chunks. Rank results by similarity score. Filter and re-rank as needed.

Step 3: Context Assembly combines retrieved chunks into coherent context that the LLM can effectively process. The system adds source metadata and citations to enable verification and traceability. Then it structures the information in formats optimized for LLM processing, ensuring the model receives well-organized, relevant information.

Step 4: Generation sends the user question along with retrieved context to the LLM. This provides all necessary information for an informed response. The LLM generates responses grounded in the provided information rather than relying on potentially outdated training data. It includes citations and confidence indicators that help users assess the reliability and sources of the generated content.

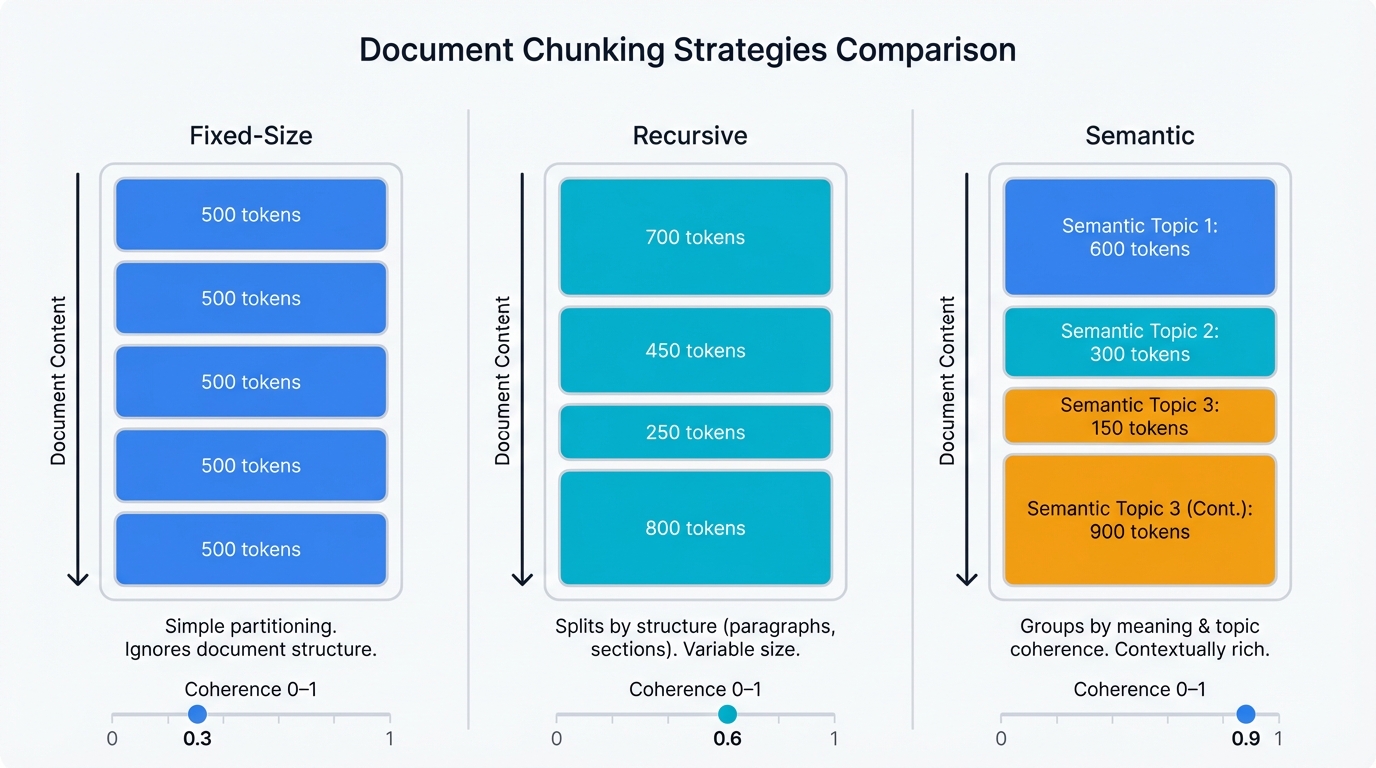

Choosing Your Chunking Strategy: The Foundation of Good Retrieval

How you break up your documents directly impacts retrieval quality. Get chunking wrong, and even the best LLM will struggle with poor context.

Fixed-Size Chunking: Simple but Limited

How it works: Split documents into equal-sized pieces (e.g., 500 characters)

This approach offers several advantages. It's simple to implement with straightforward logic. It produces predictable chunk sizes that are easy to manage. It works well for uniform content with consistent structure.

However, fixed-size chunking has significant limitations. It breaks semantic boundaries by cutting text at arbitrary character counts rather than natural topic breaks. Important information may get split across multiple chunks. It completely ignores document structure like headings, paragraphs, or logical sections.

Best for: Simple documents with uniform structure

Recursive Chunking: Smarter Boundaries

How it works: Split on natural boundaries (paragraphs, sentences) while respecting size limits

Recursive chunking provides significant improvements over fixed-size approaches. It preserves semantic coherence by splitting at natural boundaries. It respects document structure through intelligent parsing. It balances size constraints with meaningful content organization.

The trade-offs include more complex implementation that requires sophisticated text parsing logic. Variable chunk sizes can complicate downstream processing. Complex topics that span multiple natural boundaries may still get fragmented.

Best for: Most general-purpose applications

Semantic Chunking: AI-Powered Segmentation

How it works: Use AI to identify topic boundaries and create semantically coherent chunks

Semantic chunking offers the most sophisticated approach. It maintains topical coherence through AI-powered boundary detection. It adapts intelligently to content structure regardless of format. It preserves important conceptual relationships that other methods might break.

The costs include significant computational expense for analyzing semantic boundaries. You'll need to maintain and update dependency on embedding models. Variable, unpredictable chunk sizes can complicate storage and processing systems.

Best for: Complex documents where topic coherence is critical

Building Your First RAG System

Here's a practical implementation that you can adapt for your needs:

import openai
import faiss
import numpy as np
from sentence_transformers import SentenceTransformer
from typing import List, Tuple

class SimpleRAGSystem:
    def __init__(self, embedding_model_name: str = "all-MiniLM-L6-v2"):
        self.embedding_model = SentenceTransformer(embedding_model_name)
        self.documents = []
        self.embeddings = None
        self.index = None

    def add_documents(self, documents: List[str]):
        """Add documents to the knowledge base"""
        self.documents.extend(documents)

        # Generate embeddings
        new_embeddings = self.embedding_model.encode(documents)

        if self.embeddings is None:
            self.embeddings = new_embeddings
        else:
            self.embeddings = np.vstack([self.embeddings, new_embeddings])

        # Build/update FAISS index
        self._build_index()

    def _build_index(self):
        """Build FAISS index for fast similarity search"""
        dimension = self.embeddings.shape[1]
        self.index = faiss.IndexFlatIP(dimension)

        # Normalize embeddings for cosine similarity
        faiss.normalize_L2(self.embeddings)
        self.index.add(self.embeddings.astype('float32'))

    def retrieve(self, query: str, top_k: int = 3) -> List[Tuple[str, float]]:
        """Retrieve most relevant documents for a query"""
        query_embedding = self.embedding_model.encode([query])
        faiss.normalize_L2(query_embedding)

        scores, indices = self.index.search(query_embedding.astype('float32'), top_k)

        results = []
        for score, idx in zip(scores[0], indices[0]):
            if idx < len(self.documents):
                results.append((self.documents[idx], float(score)))

        return results

    def generate_answer(self, query: str, context_docs: List[str]) -> str:
        """Generate answer using retrieved context"""
        context = "\n\n".join([f"Document {i+1}: {doc}"
                               for i, doc in enumerate(context_docs)])

        prompt = f"""Based on the following documents, answer the question.

Context:
{context}

Question: {query}

Answer:"""

        response = openai.ChatCompletion.create(
            model="gpt-4",
            messages=[{"role": "user", "content": prompt}],
            max_tokens=500,
            temperature=0.1
        )

        return response.choices[0].message.content

    def query(self, question: str, top_k: int = 3) -> dict:
        """Complete RAG pipeline: retrieve and generate"""
        retrieved = self.retrieve(question, top_k)
        docs = [doc for doc, score in retrieved]
        scores = [score for doc, score in retrieved]

        answer = self.generate_answer(question, docs)

        return {
            "answer": answer,
            "sources": docs,
            "relevance_scores": scores
        }

# Example usage
rag = SimpleRAGSystem()

documents = [
    "RAG combines retrieval and generation for better AI responses.",
    "Vector databases enable fast similarity search for documents.",
    "Chunking strategy significantly impacts retrieval quality.",
    "LLMs often hallucinate when they lack relevant information."
]

rag.add_documents(documents)

result = rag.query("How does RAG improve AI responses?")
print(f"Answer: {result['answer']}")
print(f"Sources: {result['sources']}")

This basic implementation demonstrates the core RAG concepts. Production systems need additional components. You'll want document parsing for handling different file formats. Advanced chunking strategies for better semantic coherence. Re-ranking to improve relevance. Robust error handling for real-world usage.

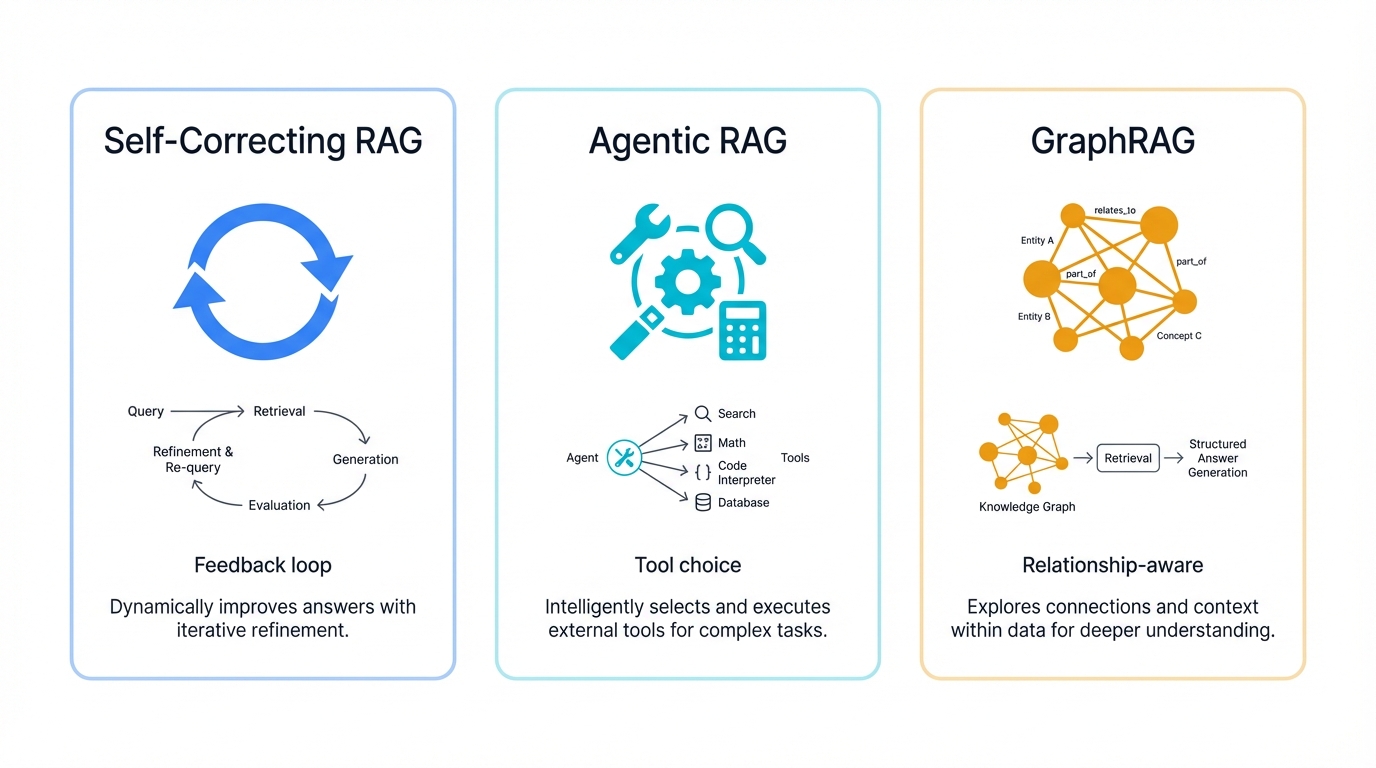

Advanced RAG: Beyond Basic Retrieval

Self-Correcting RAG: When the AI Double-Checks Itself

Basic RAG sometimes retrieves irrelevant documents. Or generates answers that don't match the context. Self-correcting RAG adds a feedback loop.

The system first generates an initial response using retrieved documents. Then it evaluates response quality using an AI critic. If the evaluation fails, it transforms the query and tries again. When internal knowledge proves insufficient, the system can optionally search external sources like the web.

This creates more reliable responses by catching and correcting errors automatically.

Agentic RAG: AI That Chooses Its Tools

Instead of just searching one knowledge base, agentic RAG gives the AI multiple tools and the intelligence to choose the right one.

Tools might include:

• Internal document search for accessing proprietary knowledge
• Web search engines for current information
• Database queries for structured data retrieval
• API calls for real-time system integration
• Calculator functions for computational tasks

The agent makes intelligent decisions. Which tools to use for each query? How to combine information from multiple sources into coherent responses? When to ask follow-up questions for clarity? Whether to provide an answer or request clarification when information is insufficient?

This creates more autonomous and capable AI assistants.

GraphRAG: Understanding Relationships

Traditional RAG searches for similar text chunks. GraphRAG builds knowledge graphs that capture relationships between entities, enabling more sophisticated reasoning.

GraphRAG provides powerful capabilities:

• Multi-hop reasoning across connected entities allows for sophisticated analysis
• Relationship-aware retrieval considers contextual connections
• Better handling of complex queries that require understanding multiple interconnected concepts
• Deep understanding of entity hierarchies enables more nuanced responses

GraphRAG excels in specific use cases. Research papers with citation networks benefit from understanding how studies build on each other. Legal documents with case law relationships show precedent and legal reasoning chains. Technical documentation with component dependencies requires understanding how different system parts interact and depend on each other.

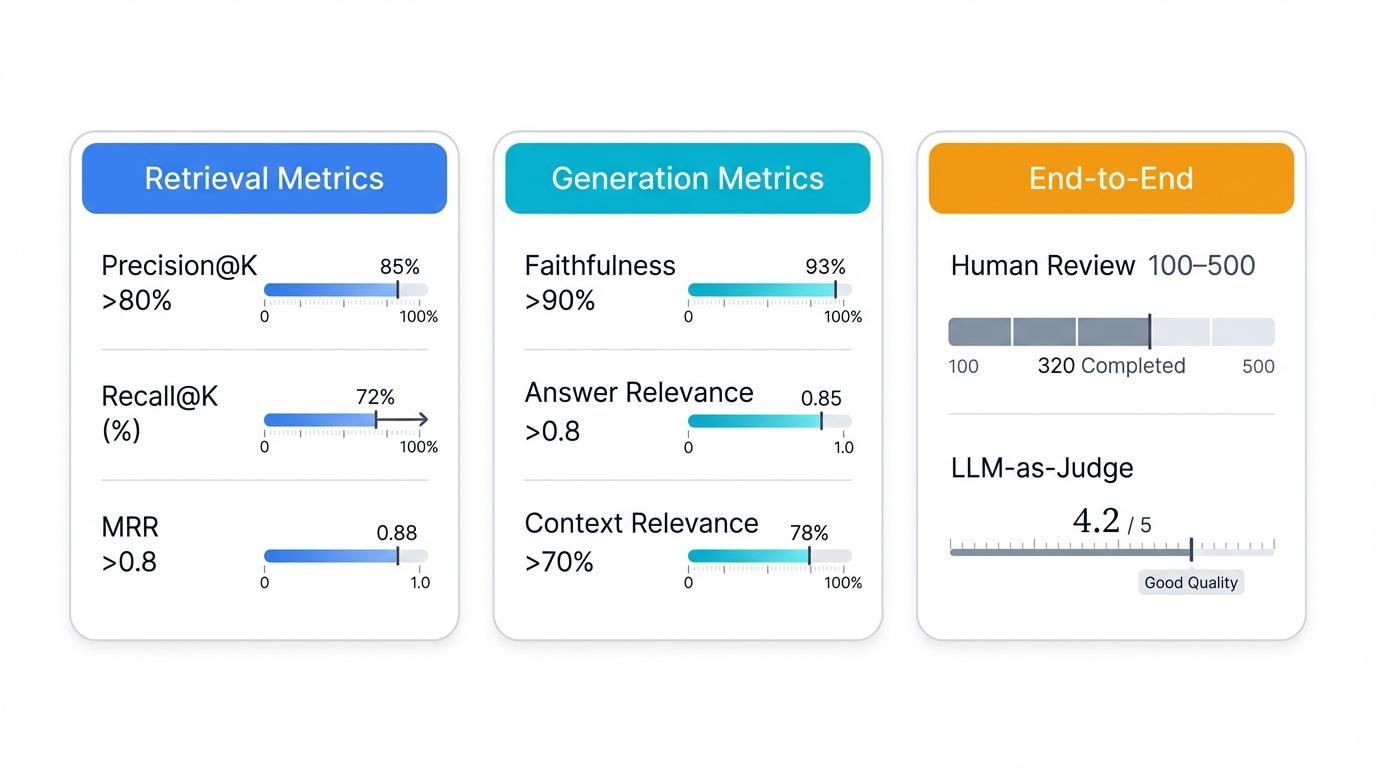

Evaluating RAG Performance: Metrics That Matter

Retrieval Metrics: Is Your Search Working?

Precision@K measures what percentage of retrieved documents are actually relevant to the query.

Formula: Relevant retrieved documents ÷ Total retrieved documents

Target: Above 80% for most applications to ensure high-quality results

Recall@K measures what percentage of relevant documents you successfully retrieved from the total available relevant documents.

Formula: Relevant retrieved documents ÷ Total relevant documents in knowledge base

Target: Varies by use case. Higher requirements for critical applications where missing information could have serious consequences.

Mean Reciprocal Rank (MRR) measures how quickly relevant results appear in the search results.

Formula: Average of (1 ÷ rank of first relevant result) across all queries

Target: Above 0.8 for good user experience, ensuring relevant information appears near the top of results

Generation Metrics: Is Your AI Accurate?

Faithfulness determines whether the generated answer sticks to the retrieved context without adding fabricated information.

Measurement: AI evaluators check for hallucinations and unsupported claims

Target: Above 90% for production systems to maintain trustworthiness

Answer Relevance evaluates whether the answer actually addresses the question asked.

Measurement: Semantic similarity between question and answer using embedding models

Target: Greater than 0.8 similarity score to ensure answers directly address user queries

Context Relevance assesses whether the retrieved documents are actually helpful for generating the answer.

Measurement: Analyze how much of the retrieved context gets used in the final answer

Target: Greater than 70% context utilization, indicating retrieved documents contain relevant information

End-to-End Evaluation

Human evaluation remains the gold standard for assessing RAG system quality. Expert reviewers rate answers on accuracy, completeness, and usefulness using their domain knowledge. This approach is expensive but essential for critical applications where errors could have serious consequences. Most organizations sample 100-500 Q&A pairs quarterly to maintain quality oversight.

Automated evaluation using LLM-as-a-Judge provides a scalable alternative to human review. Organizations use GPT-4 or similar advanced models to evaluate answer quality across multiple dimensions. This approach can scale to evaluate thousands of responses efficiently while correlating well with human judgment for most use cases.

Production Deployment: Making RAG Scale

Architecture Patterns for Production

The microservices approach separates services for ingestion, retrieval, and generation into independent components. This architecture enables independent scaling and updates for each service based on demand patterns. The separation provides better fault isolation, preventing issues in one component from affecting the entire system.

Event-driven updates automatically re-index documents when content changes in the source systems. This approach uses message queues for reliable processing that can handle spikes in update volume. The system maintains data freshness without manual intervention, ensuring users always access current information.

Effective caching strategies cache frequent queries and responses to avoid repeated processing of common requests. The system caches embeddings for unchanged documents to prevent unnecessary recomputation. These strategies significantly reduce latency and computational costs while maintaining system responsiveness.

Cloud Platform Options

Monitoring and Observability

Key metrics to track:

Query latency should stay under 2 seconds end-to-end for good user experience.

Retrieval accuracy needs tracking through user feedback and explicit evaluation metrics.

System uptime and error rates indicate overall system health and reliability.

Cost per query and scaling efficiency help optimize resource usage as the system grows.

Alerting systems should trigger on:

High error rates or latency spikes indicate system problems requiring immediate attention.

Embedding model drift or failures affect retrieval quality and need quick response.

Vector database performance issues can cause widespread system slowdowns.

Unusual query patterns or potential attacks need monitoring for security and abuse prevention.

Common Pitfalls and How to Avoid Them

The "Retrieval Carpet Bomb" Anti-Pattern

Problem: Retrieving too many documents hoping the LLM will sort it out

Impact: Noisy context, slower generation, higher costs

Solution: Tune retrieval parameters, implement re-ranking, use smaller but more relevant chunks

The "Chunk Boundary Massacre" Problem

Problem: Important information split across chunk boundaries

Impact: Missing critical context, incomplete answers

Solution: Use overlapping chunks, semantic chunking, or document-aware splitting

The "Embedding Model Mismatch" Trap

Problem: Using different embedding models for indexing and querying

Impact: Poor retrieval performance, irrelevant results

Solution: Standardize on one embedding model, version control your embeddings

The "Context Window Explosion" Issue

Problem: Retrieved context exceeds LLM's context window

Impact: Truncated context, missing information, errors

Solution: Implement context compression, summarization, or intelligent filtering

The Future of RAG: What's Coming Next

Emerging Trends

Multimodal RAG: Searching across text, images, audio, and video content with unified embedding spaces

Real-Time RAG: Sub-second retrieval and generation for conversational AI and live data analysis

Federated RAG: Searching across multiple organizations' knowledge bases while preserving privacy

Reasoning-Enhanced RAG: AI that can perform multi-step logical reasoning over retrieved information

Research Frontiers

Learning to Retrieve: Models that improve their retrieval strategies based on generation quality feedback

Compositional RAG: Combining information from multiple sources to answer complex, multi-faceted questions

Privacy-Preserving RAG: Techniques for secure retrieval without exposing sensitive documents

Adaptive Chunking: AI-powered strategies that optimize chunk boundaries for specific document types and queries

Getting Started: A Four Phase RAG Implementation Roadmap

Phase 1: Foundation

Phase 1 begins by defining your use case and success metrics to establish clear goals and measurement criteria. Choose your technology stack from options like LangChain, LlamaIndex, or custom implementations based on your requirements.

Implement basic RAG functionality with your most important documents to create a minimum viable system. Test with real users and gather feedback to understand actual usage patterns and pain points.

Phase 2: Optimization

Phase 2 focuses on improving chunking strategy based on retrieval performance data from real usage. Implement re-ranking to improve relevance by adding semantic scoring and filtering layers.

Add comprehensive evaluation metrics and monitoring to track system performance continuously. Scale the document ingestion pipeline to handle larger volumes and more diverse content types.

Phase 3: Advanced Features

Phase 3 introduces query expansion and transformation to handle user queries more intelligently. Implement self-correction loops that can detect and fix poor results automatically.

Build agentic capabilities if your use case requires autonomous decision-making and tool usage. Deploy to production with proper monitoring, alerting, and scalability measures in place.

Phase 4: Excellence

Phase 4 establishes continuous evaluation and improvement processes to maintain system quality over time. A/B test new techniques against established baselines to validate improvements before full deployment.

Monitor and optimize costs as usage scales to maintain economic efficiency. Stay current with research developments in RAG and related technologies to incorporate beneficial innovations.

Your Next Steps

RAG transforms your AI from a static knowledge repository into a dynamic, up-to-date expert that can access any information you provide. The technology is mature. The tools are available. The results are proven.

Start simple. Build a basic RAG system with your most critical documents. Measure everythingretrieval accuracy, generation quality, user satisfaction. Iterate based on real user needs, not theoretical improvements.

The future of AI isn't just about smarter models. It's about connecting those models to the vast, ever-changing world of human knowledge. RAG is how you make that connection.
